تفاصيل المنتج
Place of Origin: China
اسم العلامة التجارية: Brictec
إصدار الشهادات: CE ISO
Model Number: VP40/35 VP40/40 VP45/35 VP45/40 VP45/45
شروط الدفع والشحن
Minimum Order Quantity: 1set
الأسعار: USD 38500-44000/set
Packaging Details: Customized
Delivery Time: 80 days
Payment Terms: L/C, T/T
Supply Ability: Customized
Voltage: |
380V,220V/380V,380V or as your request |
Condition: |
New |
Automatic: |
Yes |
Method: |
Vacuum Extruder |
Processing: |
Brick Molding Machine,Brick Production Line |
After-sales service provided: |
Engineers available to service machinery overseas |
إصدار الشهادات: |
CE,ISO |
Type: |
clay brick machine |
Raw material: |
clay,soil,Clay Soil Earth,mud and so on |
Name: |
fire clay brick vacuum extruder clay brick making machine price |
Warranty: |
1 Year |
Product name: |
vacuum extruder for clay brick making machine |
Block type: |
Clay Block,pavers,Interlocks Shapes,clay bricks,soil blocks and so on |
Voltage: |
380V,220V/380V,380V or as your request |
Condition: |
New |
Automatic: |
Yes |
Method: |
Vacuum Extruder |
Processing: |
Brick Molding Machine,Brick Production Line |
After-sales service provided: |
Engineers available to service machinery overseas |
إصدار الشهادات: |
CE,ISO |
Type: |
clay brick machine |
Raw material: |
clay,soil,Clay Soil Earth,mud and so on |
Name: |
fire clay brick vacuum extruder clay brick making machine price |
Warranty: |
1 Year |
Product name: |
vacuum extruder for clay brick making machine |
Block type: |
Clay Block,pavers,Interlocks Shapes,clay bricks,soil blocks and so on |
Equipment Introduction

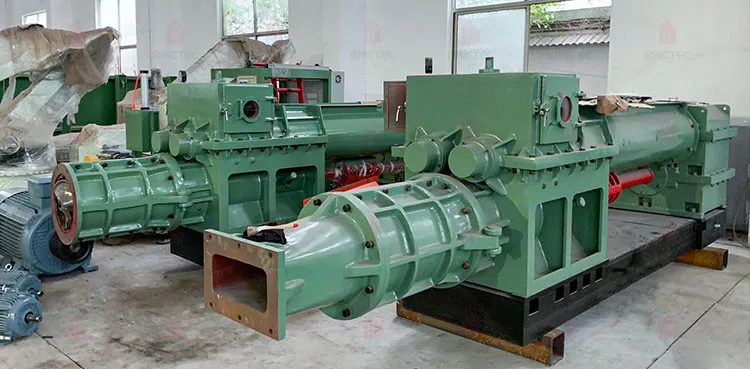

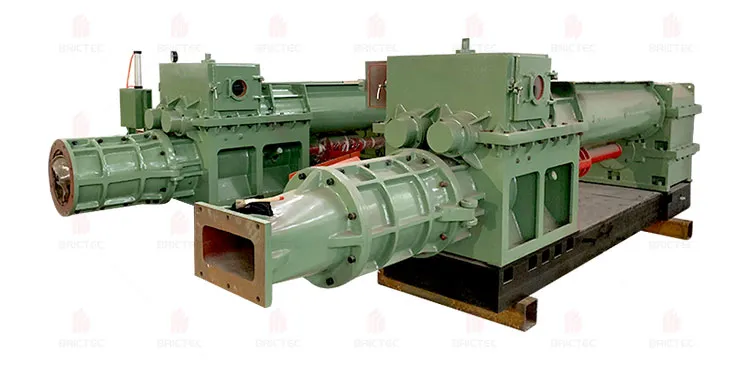

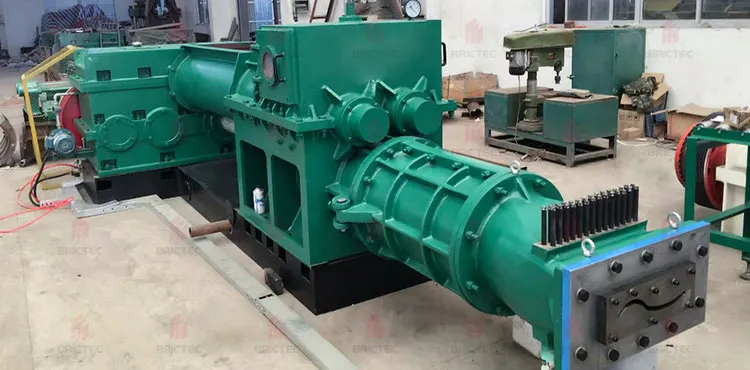

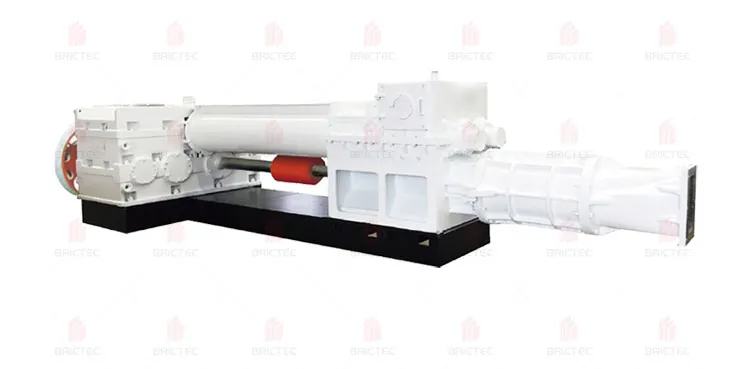

The compact extruder is a single-stage vacuum brick machine engineered for small-to-medium clay fired brick plants. It eliminates the conventional upper mixing section and is rigidly bolted to the upstream mixer/extruder mouth, creating a one-piece structure that greatly shortens overall length and reduces building height requirements.
Application in Clay Brick Plant:

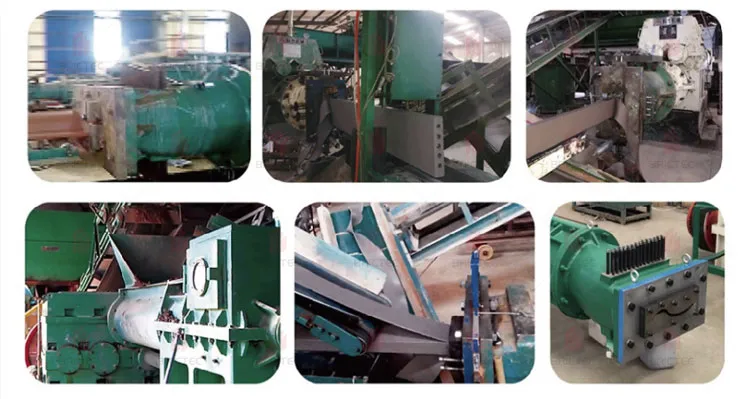

Used to vacuum-extrude pre-treated clay, shale, or coal-gangue mixes into wet brick blanks in one pass, ready for cutting, stacking, drying, and firing downstream.
| Model | Auger diameter(mm) | Maximum extrusion pressure (Mpa) | Capacity(t/h) | Overall dimension (mm) | Weight(t) | Power(kW) |
| VP40/35 | φ400/350 | 3.0 | 4-13 | 6000 x 2800 x 1500 | 8 | 45-55 |
| VP40/40 | φ400 | 3.0 | 4-15 | 6500 x 2800 x 1500 | 9 | 55-75 |
| VP45/35 | φ450/350 | 3.0 | 4-18 | 7000 x 3000 x 1500 | 10 | 55-75 |
| VP45/40 | φ450/400 | 3.0 | 6-25 | 7000 x 3000 x 1800 | 12 | 75-90 |
| VP45/45 | 15-30 | 3.0 | 10-30 | 7000 x 3000 x 1800 | 14 | 90-110 |
Function:
• Vacuum degassing: achieves -0.08 MPa vacuum to remove air, increasing blank density;
• Continuous extrusion: direct coupling with the upstream mixer ensures steady, uninterrupted output;
• Space-saving: overall machine length is ~30 % shorter than traditional two-stage extruders, ideal for retrofits or height-limited plants.
Extrusion Advantages:
• One-piece mouth eliminates mud leakage, boosting forming rate to >98 %;
• Compact vacuum chamber cuts energy use by ~15 %;
• Quick-change die head allows mold switch in 30 min;
• Low-noise operation ≤75 dB(A).
Key Specifications:
• Extrusion pressure: 2.0-3.5 MPa
• Vacuum level: -0.08 MPa
• Capacity: 8,000-12,000 standard bricks/h
• Installed power: 45-75 kW
• Brick types: solid, perforated, hollow blocks
• Dimensions: approx. 4.5 m × 1.6 m × 1.8 m
This compact extrusion brick machine is most suitable for the following two types of scale of clay brick factories:
1. Small-to-medium brick plants (3,000-20,000 t of finished bricks per year, operating in one or two shifts).
2. Retrofit projects with limited building height or length, or emergency/short-term projects that require rapid deployment on a compact footprint.
